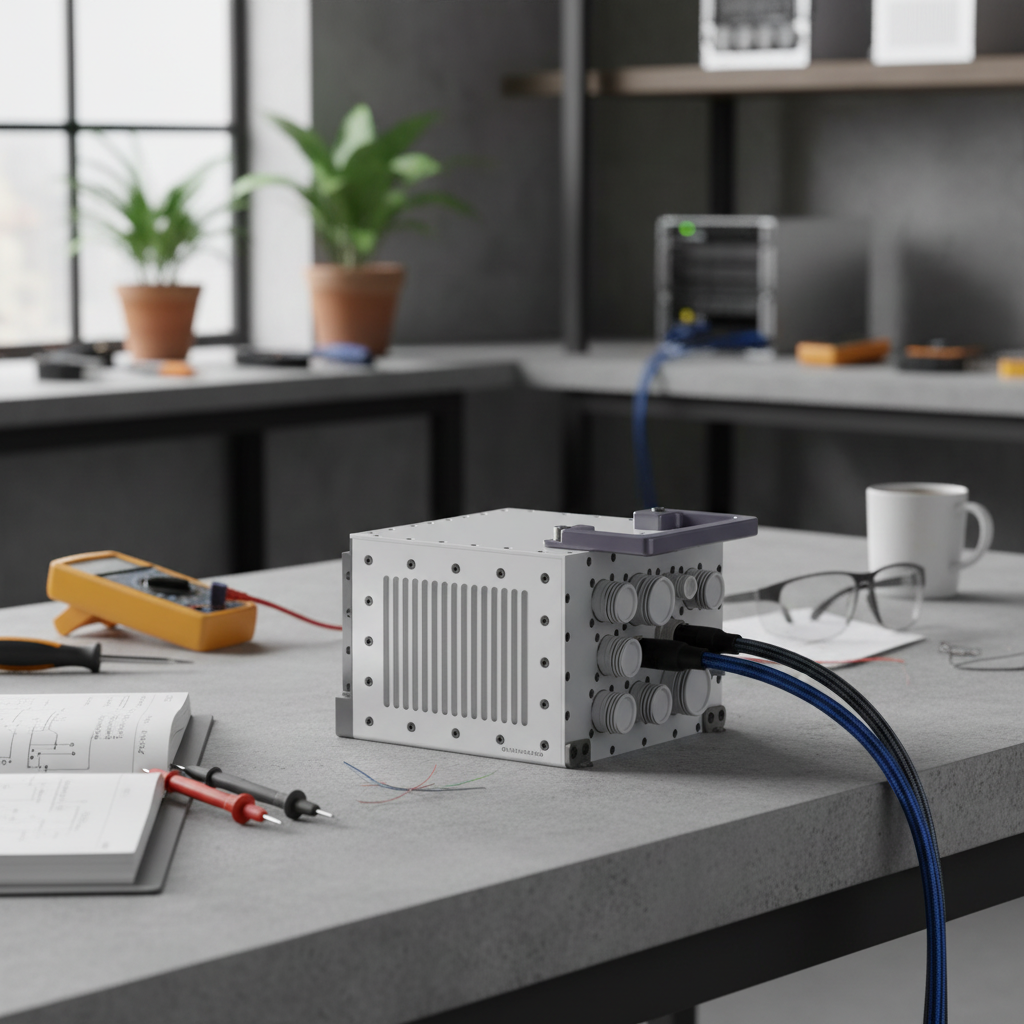

There are 6 independent Layer 3 ethernet switches (SW1, SW2, SW3, SW4, SW5, SW6) in the AB Switch Unit. Ethernet messages on all ports are in UDP protocol. AB Switch Unit can be connected to 6 internal ethernet switches and 10GBASE-T ethernet port (#7) in the unit and have 1 internal Ethernet Stream Multiplexer (ESM).
I/O Connections
Ethernet – 15x 1000Base-T
Ethernet – 1x 10GBASE-T
DEBUG Ethernet – 1x 10/100
Serial – 1x RS422, 1x RS485
1x Debug UART
1X MIL-STD-1553B
1X ARINC429
Additional Connections
JTAG
Micro SD
Enclosure
Power – DC 28±5 Volt MIL-STD-1275E
Power Consumption <30W
Dimensions – 200 x 170 x 130 mm
Architecture
Application Processing Unit – 64-bit Cortex-A53
Real-Time Processing Unit – 32-bit Cortex-R5
Graphic Processing Unit – ARM Mali™-400 MP2
Embedded/External Memory – 256KB On-Chip RAM, DDR4-2400 (64-bit) on PS-Side, DDR4 2400 (16bit) on PL-Side, QSPI, eMMCVideo Codec Unit (VCU) – H.264/H.265
